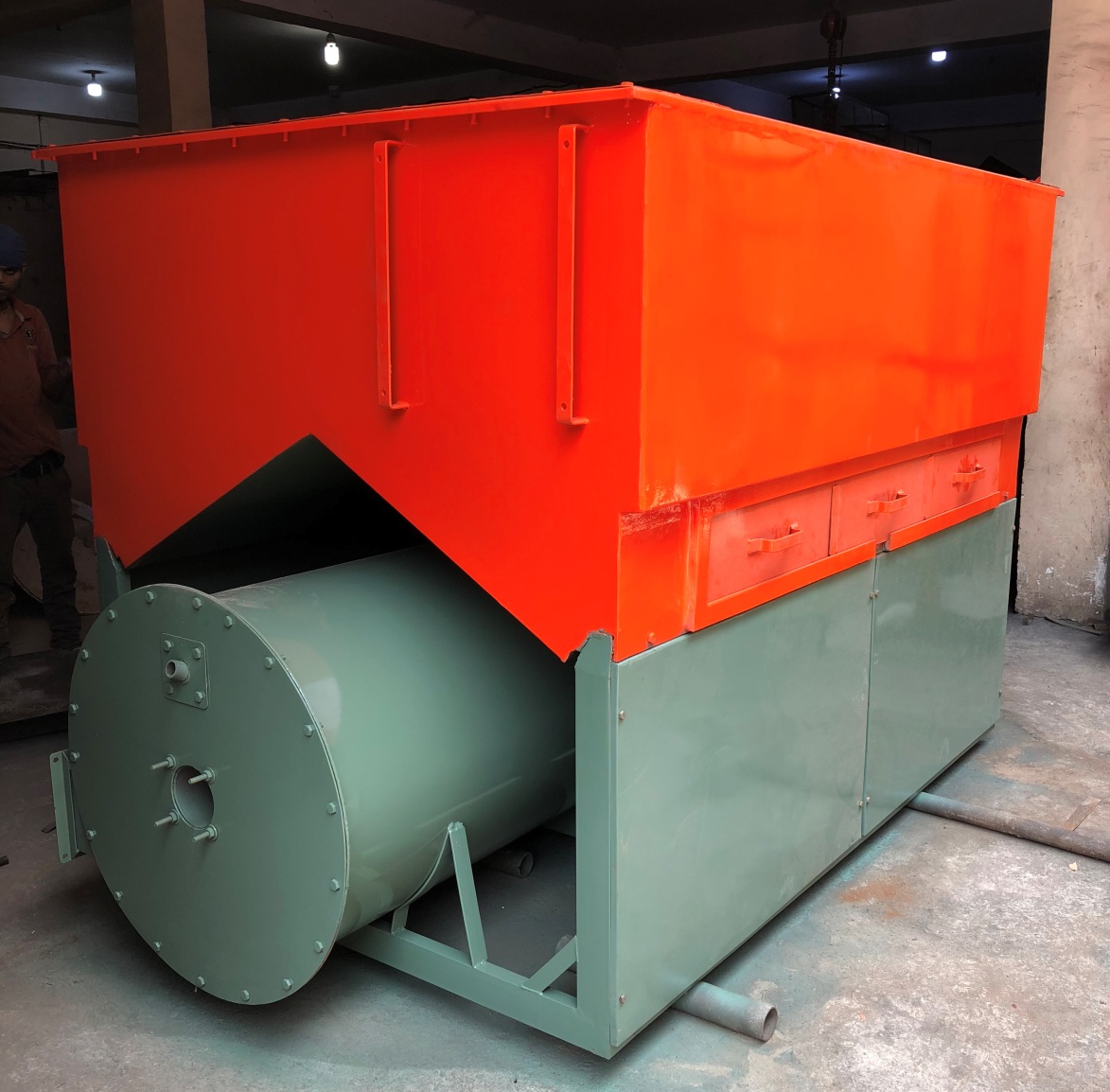

Dryer

Dryer

Product description :

With excellent performance, high reliability and maximum efficiency, the Dal Mill Dryer is one of our best sellers. Made using one of the highest quality premium grade in the market, sourced from one of India's leading and most trusted suppliers of raw materials, our Dal Mill Dryer is made using cutting edge techniques and our top of the line technology to ensure that our machines deliver optimal performance.

Salient Features :

More Than 50% saving as compared to electric heater.
High Productivity.
Low initial Cost.
Low running Cost.
High quality supari by equal distribution of Hot Air.
Space saver & can be easy to be installed at any floor.

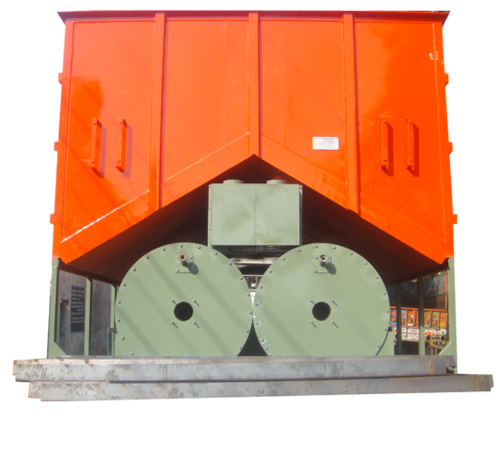

Dryer

Product description :

IIt is used to dry and roast grains to remove the moisture and bring it to desired value of moisture content. For customer’s convenience, the dryer comes in different sizes and discharge sides. Our range starts from 10 kg. To 10 Tons per batch.

Working Principle :

When dryer is switched on, the blower sucks in cold air from the atmosphere and transfers it to the oil fired air heating chamber. The automatic burner operates on reverse flame principle to enable maximum thermal efficiency. The heater is indirectly fired to prevent mixing of flue gases with the hot air. Now this hot air flows in to supari chamber through Multi Fin Point. Hence each grain of supari gets absolutely equal heat.
Heat recovery unit installed in it helps to increase the efficiency of the dryer.

Design of Dryer :

The indirect oil fired heater has fully automatic self igniting imported burner assembly with horizontal firing, pressure atomizing, forced draft type with direct electric spark ignition. The burner is installed on form side of plant. The burner is imported from F.B.R. Italy with world class spare parts from reputed companies like sequence controller from Landis & Gyr (Germany), transformer from -Cofi / Feeda (Italy), fuel pump form Suntec (France), nozzle from Danfoss (Denmark), motor from Simel / AACO (Italy), photocell from Landis & Gyr (Germany). This ensures trouble free, uninterrupted operation of Dryer.
